EBSD (Electron Backscatter Diffraction)

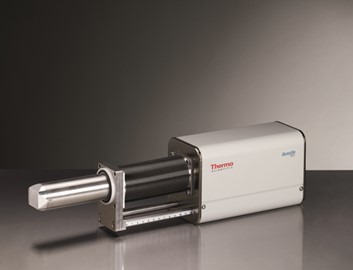

Thermo – QUASOR™ Electron Backscatter Diffraction

Thermo EBSD QuasOr™ 을 사용하여 EBSD 데이터와 EDX / WDX 스펙트럼 이미지 자료들을 간편한 조작으로 얻을 수 있습니다. Thermo EBSD시스템은 EDX NORAN System 7™ 과 완벽한 시스템통합을 통하여 화학 정보와 함께 물질의 Crystal Structure 분석결과를 제공합니다.

Specification Summary

Indexed Pattern Acquisition Rate	600 indexed patterns per second (with or without simultaneous EDS and WDS)
Insert/Retract	Motorized slide with full software and/or hardware control
Operating System	Microsoft Windows XP, Windows 7
Phosphor	Square (27 mm x 27 mm), user replaceable
Resolution	640 x 480, pixel binning at 1 x 1, 2 x 2, 4 x 4, 8 x 8
Software Data Acquisition	Basic and Advanced Level: SEM image acquisition, Simultaneous EBSD, EDS and WDS, Tilt corrected imaging, Choice of number of Hough lines, Automated pattern center calibration, Dynamic three point pattern center calibration and guided setup
Camera	Progressive Scan CCD
Data Processing and Displays	Basic Intermediate and Advanced Level: Index quality map, Pattern quality map, HKL orientation map, UVW orientation map, Euler orientation map, Phase maps, X-ray map, Grain boundary axis and angle maps, Grain size analyses, Grain shape analysis, Grain boundary CSL and special boundary maps, Editable crystal database (CIF format), Misorientation line scan extractions, Single click reporting to Microsoft Word Intermediate and Advanced Level: Pole figures, Inverse pole figures, Point and Shoot analysis Advanced Level: Strain evaluation (internal misorientations)

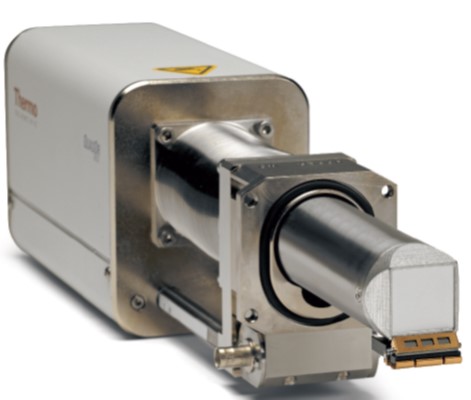

Description	Thermo Scientific QUASOR, the no compromise EBSD
Diameter (Metric) Detector Tube	42 mm

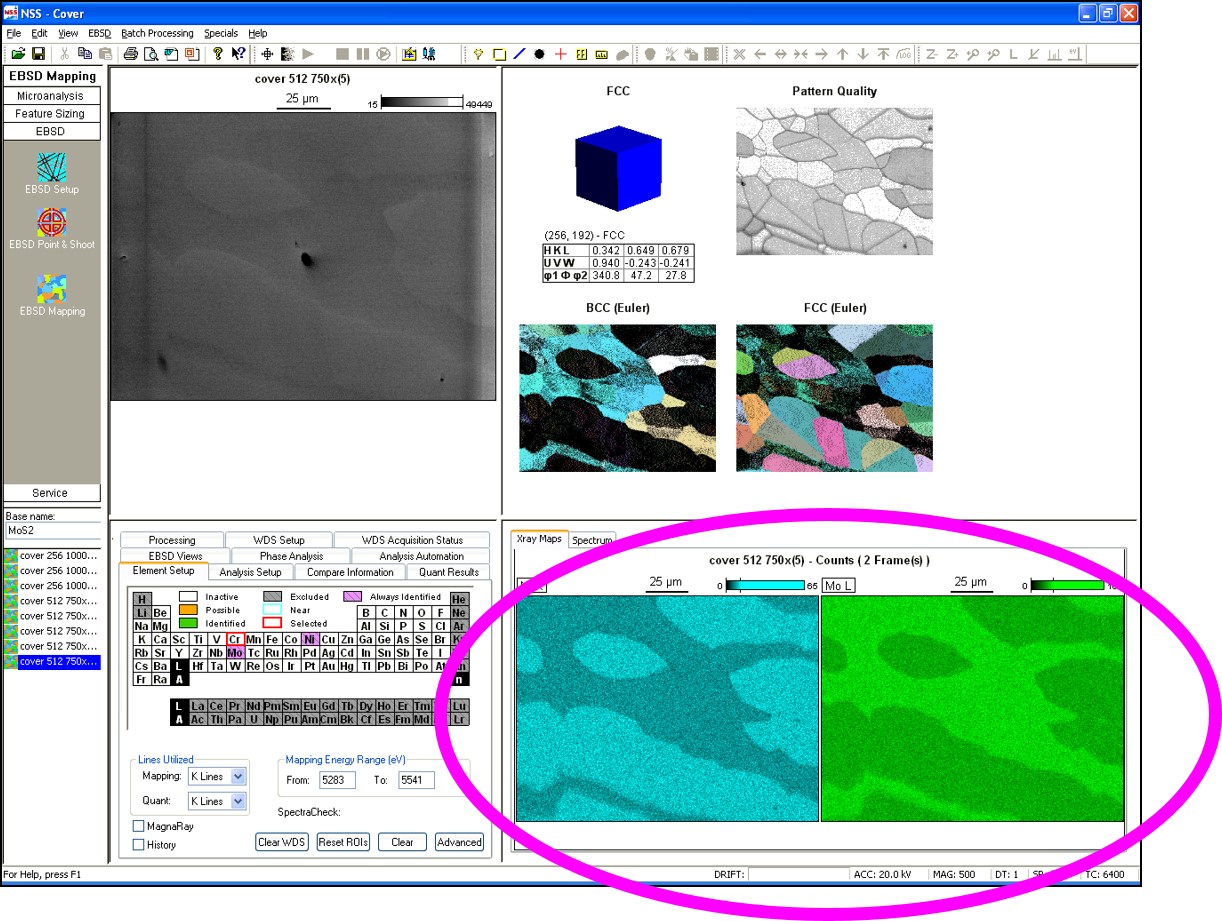

Simultaneous Spectral Imaging and EBSD

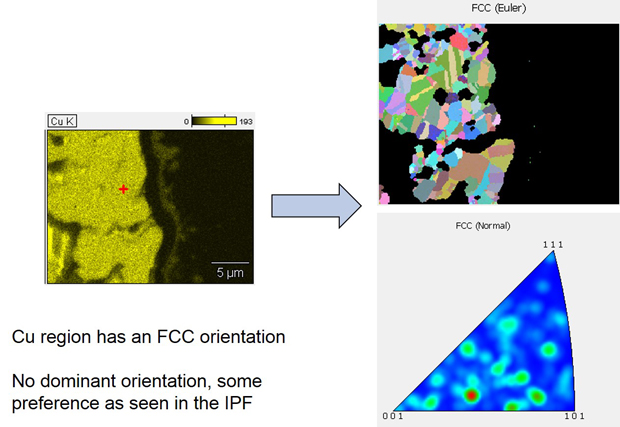

EBSD analysis of copper region

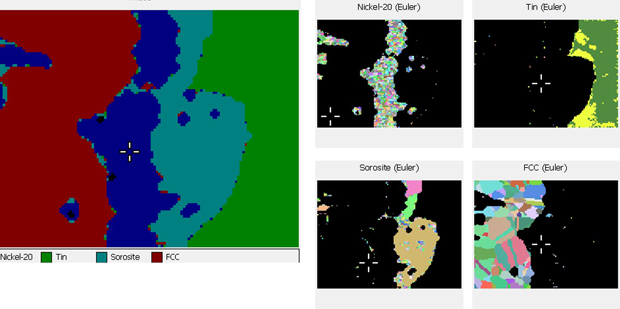

Higher resolution look at intermetallic region

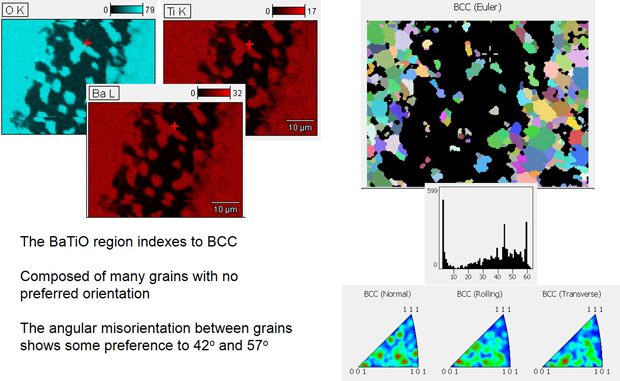

EBSD of BaTiO region

Thermo Scientific

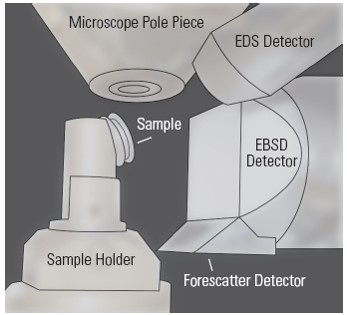

Forescatter Electron Detector
